A coal seam is a black or dark brown layer of coal found between sedimentary rock strata. It forms from ancient plant material that accumulated in swampy environments and was buried under sediments. Over millions of years, heat and pressure converted this material into coal. These seams are the primary targets of coal mining operations worldwide.
Characteristics and Occurrence
| Parameter | Description |
|---|---|
| Color | Black to dark brown |
| Structure | Layered, banded |
| Location | Sedimentary basins |
| Associated Rocks | Shale, sandstone, limestone |
Coal seams are commonly found in Gondwana basins of India such as Jharia and Raniganj.
What is Coal?
Coal is a combustible sedimentary rock mainly composed of carbon . It is classified based on rank and carbon content. Higher rank coal has greater calorific value and lower moisture.
| Type | Carbon % | Heat Value |
|---|---|---|
| Lignite | Low | Low |
| Bituminous | Medium | High |
| Anthracite | High | Very High |

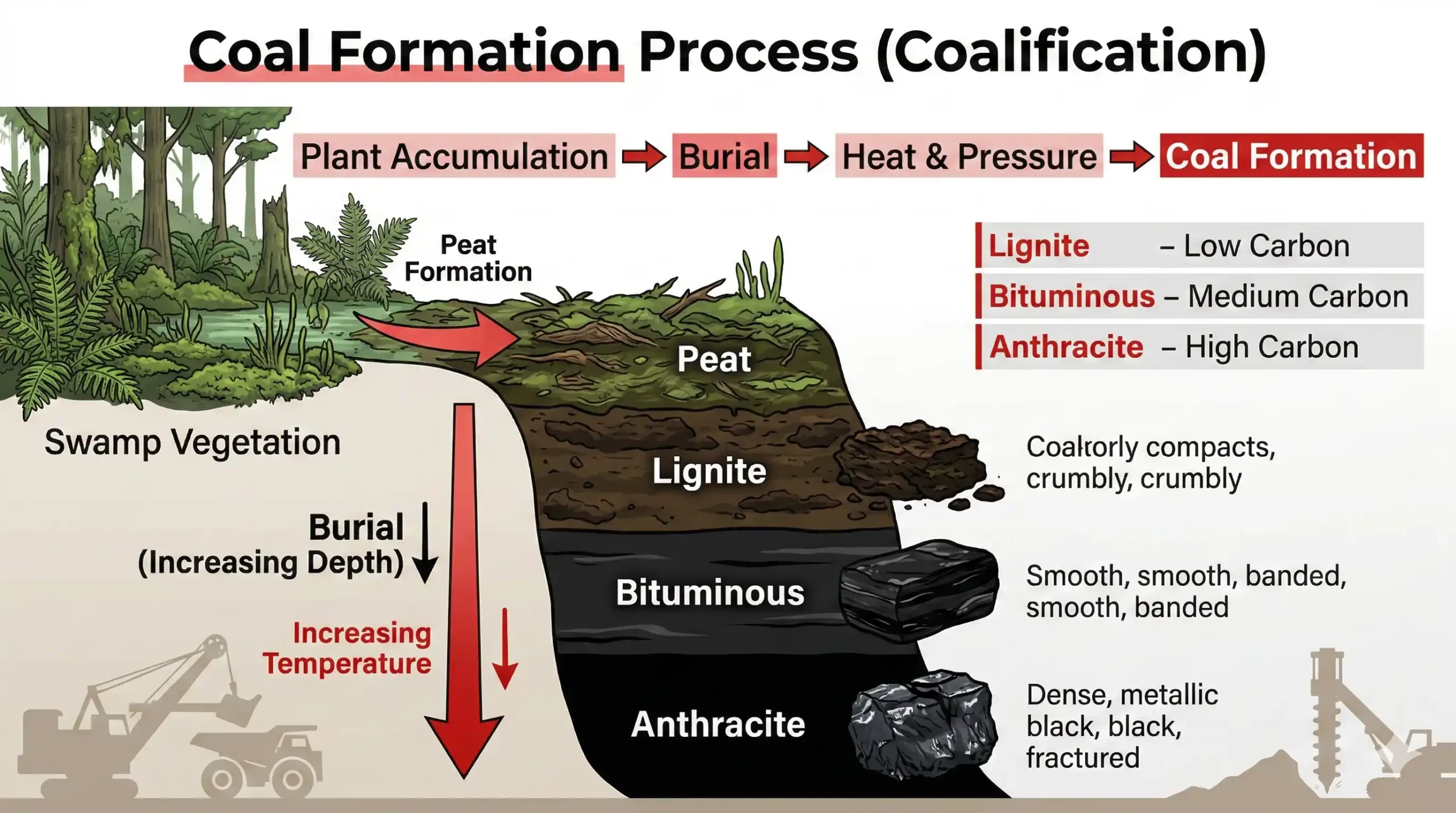

Coal Formation Process
Coal formation begins with plant accumulation in swamps. Burial under sediments increases pressure and temperature. Chemical transformation occurs gradually. This process is known as coalification .
Overburden and Roof Rocks
| Term | Meaning |
|---|---|
| Overburden | Rock/soil above coal seam |
| Roof Rock | Immediate rock layer above seam |
| Floor Rock | Layer below seam |
Seam Thickness and Quality
| Seam Type | Thickness |
|---|---|
| Thin | <1.2 m |
| Medium | 1.2–3.5 m |
| Thick | >3.5 m |
Coal quality depends on ash content, moisture, and calorific value .
Coal Mining Methods
Surface Mining Methods
Surface mining is used when coal seams are near the ground surface. It allows large-scale extraction with lower production cost. However, it significantly disturbs land and ecosystems.
| Method | Suitable Depth | Key Feature |
|---|---|---|
| Open Cast | Shallow | High production |
| Strip Mining | Horizontal seams | Layer removal |
| Mountaintop Removal | Hilly areas | Summit removal |
Underground Mining Methods
Underground mining is adopted for deeper coal seams. It reduces surface damage but requires strict safety controls. Ventilation and roof support are critical.
| Method | Description |
|---|---|
| Room & Pillar | Coal pillars support roof |
| Longwall | Full-face mechanized cutting |
Mining Methods for Thick Seams
Longwall Top Coal Caving (LTCC) is suitable for thick seams. It enables recovery of both lower and upper coal sections. Mechanization improves productivity. It also enhances recovery percentage compared to traditional methods.
Status and Prospects of Underground Thick Coal Seam Mining
Technological advancements have improved recovery in thick seams. Automation and monitoring systems enhance safety. Mechanized longwall systems are widely adopted. Future growth depends on efficient ventilation and gas control.
Coal Seam Gas (CSG)
Coal Seam Gas is methane trapped inside coal seams. It is also called Coal Bed Methane (CBM) . Gas is adsorbed within coal pores and released when water pressure reduces.

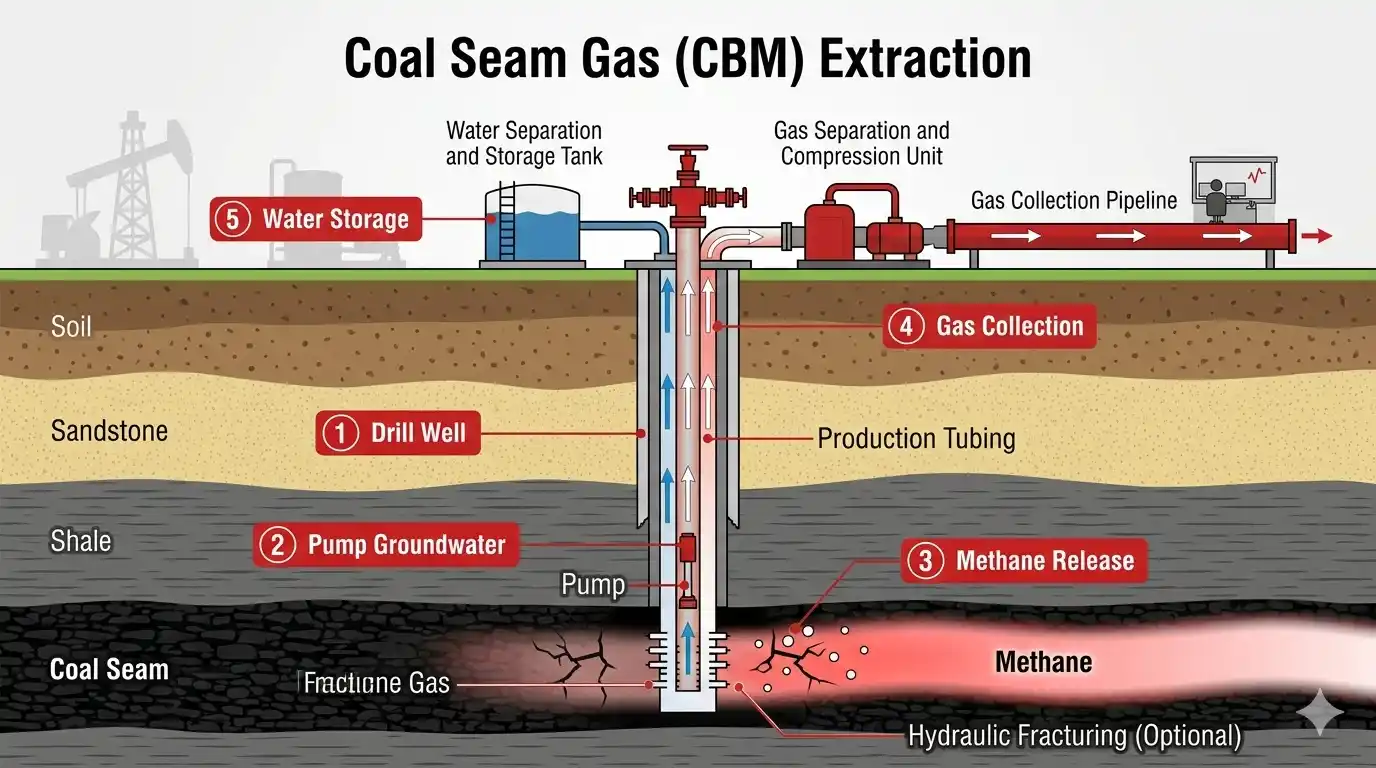

CSG Extraction Process
| Step | Activity |
|---|---|
| 1 | Drill well into seam |
| 2 | Pump out groundwater |
| 3 | Methane release |
| 4 | Gas collection |
Hydraulic Fracturing
Hydraulic fracturing may be used to increase permeability. High-pressure fluid creates fractures in coal. This improves gas flow. It is applied selectively depending on geology.

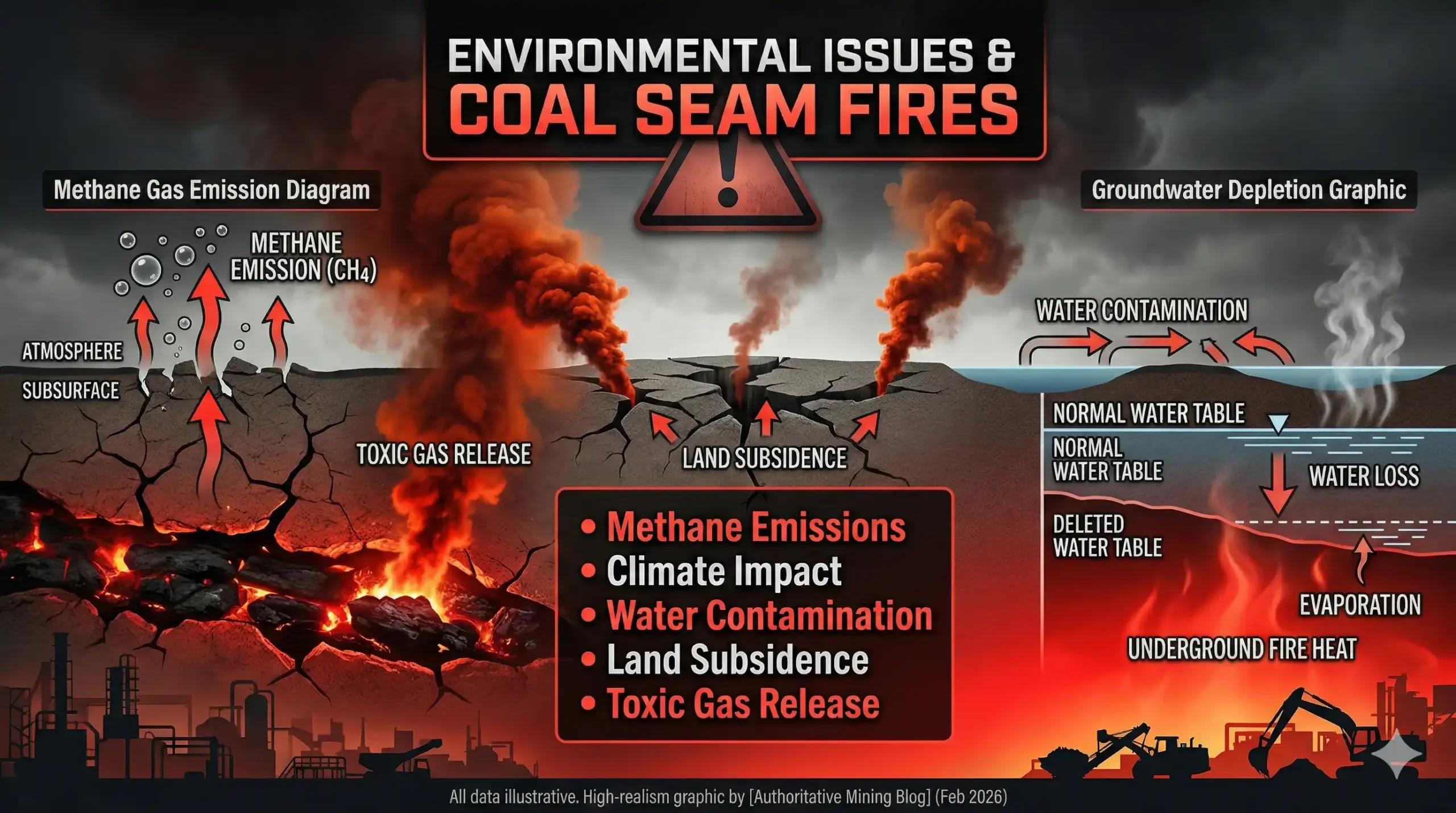

Environmental Issues & Risks
Methane Emissions and Climate Change
[su_alert style=”warning” icon=”icon: warning”]Methane is a strong greenhouse gas. Leakage during mining or CSG extraction contributes to climate change. Monitoring systems are essential to reduce emissions.[/su_alert]Water Depletion and Contamination
| Risk | Impact |
|---|---|
| Groundwater lowering | Agriculture loss |
| Chemical leakage | Water contamination |
| Produced water | Disposal challenges |
Health Impacts
Air pollution, dust, and chemical exposure may affect nearby communities. Proper environmental management reduces health risks. Monitoring and regulation are essential.
Coal-Seam Fire
[su_alert style=”danger” icon=”icon: fire”]Coal seam fires occur when underground coal ignites. These fires may burn for decades. They cause land subsidence and toxic emissions.[/su_alert]Origins
| Cause | Explanation |
|---|---|
| Spontaneous Combustion | Self-heating of coal |
| Mining Activity | Exposure to oxygen |
| External Ignition | Lightning/forest fire |
Detection and Monitoring
Thermal imaging and gas monitoring are commonly used. Satellite surveys help identify underground heat zones. Continuous inspection prevents spread.
Environmental and Health Effects
[su_alert style=”danger” icon=”icon: exclamation-triangle”]Coal fires release carbon monoxide and other toxic gases. Land surface may collapse due to subsidence. Long-term soil and air damage occurs.[/su_alert]Top Coal Recovery Behavior and Parameter Optimization
Top coal recovery depends on seam thickness and caving behavior. Equipment configuration influences efficiency. Controlled caving improves recovery. Optimization reduces coal losses.
Materials and Methods
| Method | Purpose |
|---|---|
| Numerical Modeling | Predict caving |
| Field Trials | Performance validation |
| Geomechanical Study | Stability analysis |
Innovative Extraction Method for Coal Seam Sustainability
Modern extraction focuses on safety and sustainability. Methane capture systems reduce emissions. Automation minimizes human exposure to risk. Sustainable practices balance production and environmental protection.
Frequently Asked Questions
What is a coal seam?
A coal seam is a layered deposit of coal formed from ancient plant matter buried and compressed under sedimentary rocks.
How deep are coal seams found?
Coal seams can be located near the surface or at depths exceeding 1000 meters depending on geological conditions.
What is coal seam gas?
Coal seam gas is methane stored within coal seams and extracted through controlled drilling and dewatering.
Which method is best for thick coal seams?
Longwall systems, especially LTCC, are commonly used for efficient recovery in thick seams.
What causes coal seam fires?
Spontaneous combustion, mining exposure to oxygen, or external ignition sources can start coal seam fires.
